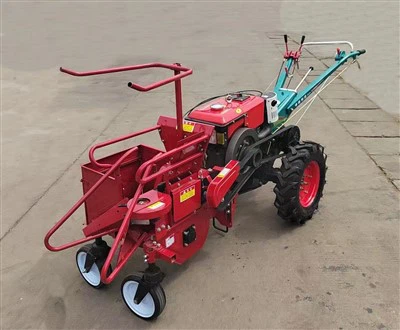

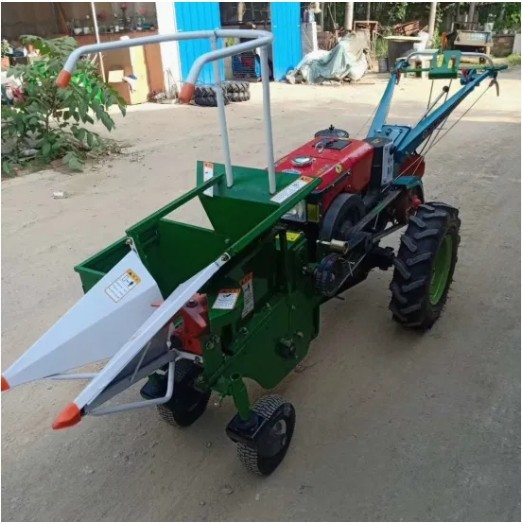

Front Type Corn Harvester ,Single Row
Product Description
This machine can complete one row of corn harvesting and straw crushing at a time. Equipped with bucket when it is full can be automatically unloaded. The height of stubble can be adjusted, the tensioning clutch works safely, and the turning radius is small.It can harvest two acres of corn per hour and crush the straw at the same time. This machine is compact and adaptable, and is widely used in small corn fields that cannot be passed by large corn harvesters such as hills and mountains. Complete functions, picking corn, crushing straw and returning to the field, etc., almost the same function as the large-scale corn harvester. It is easy to install and disassemble. Flexible operation, adjustable stubble height and small turning radius.
|
Specifications for single row corn harvester |
||
|
Product name |
corn harvester |
|
|
Model |
4YD-1 |
|
|
Structure (Self-propelled) |
picking, non-peeling, smashing |
|
|
Engine |
model |
ZH195 |
|
Calibration power |
≥8.18kw |
|
|
Calibration rotation |
2300r/min |
|
|
Working rows |
1 row |
|
|
Work width |
500-700mm |
|
|
Min ground clearance |
70mm |
|
|
Working speed |
2km/h |
|
|
Productivity |
0.1-0.2h m2/h |
|
|
Fuel consumption |
6.5kg/h m2 |
|
|
Dimensions |
920*670*620mm |
|
|
Total Weight |
90kg |
|
|
Supporting power |
8.82kw |
|
|
Knife shaft rotation |
2200r/min |
|
|
Trial sentence |
500-700mm |
|
|
Remaining height |
20-80mm |
|
|
Harvest lines |
1 |
|
|
Number of workers |
1 |
|
|
Number of blades |
24 pcs |
|
|
Chopped length |
20-80mm |
|
|
Picking structure |
|
Recumbent |
|
Picking size |
L420mm H400mm |
|
|
Track distance |
Guide wheel |
580-680mm |
|
Drive wheel |
680-740mm |
|
|
Tire specifications |
Guide wheel |
4.10/3.5-4mm |
|
Drive wheel |
6.00-12mm |
|
